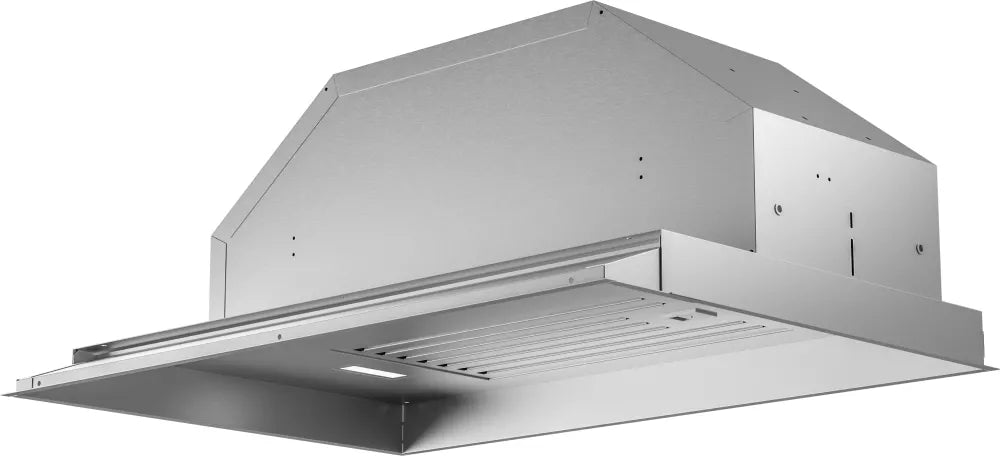

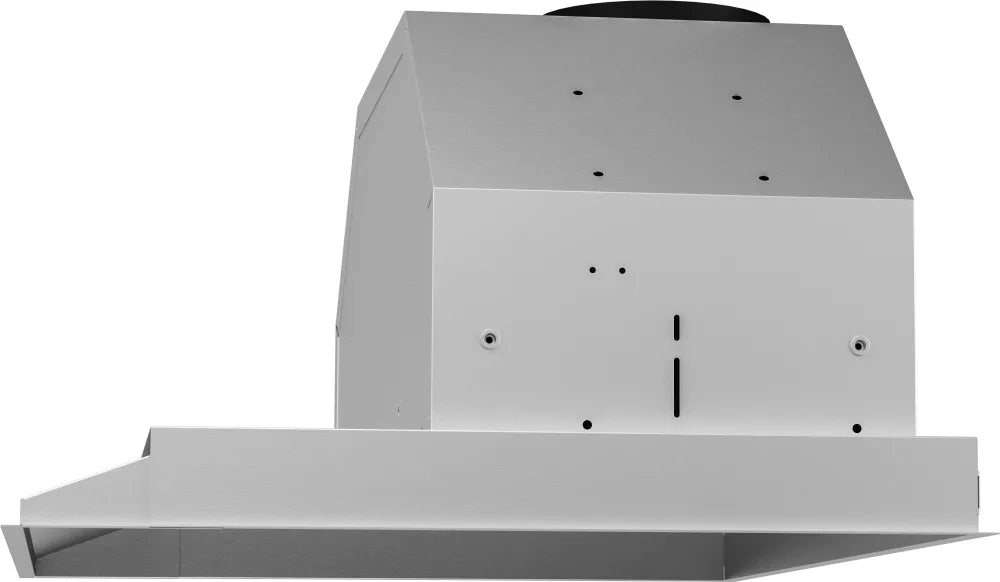

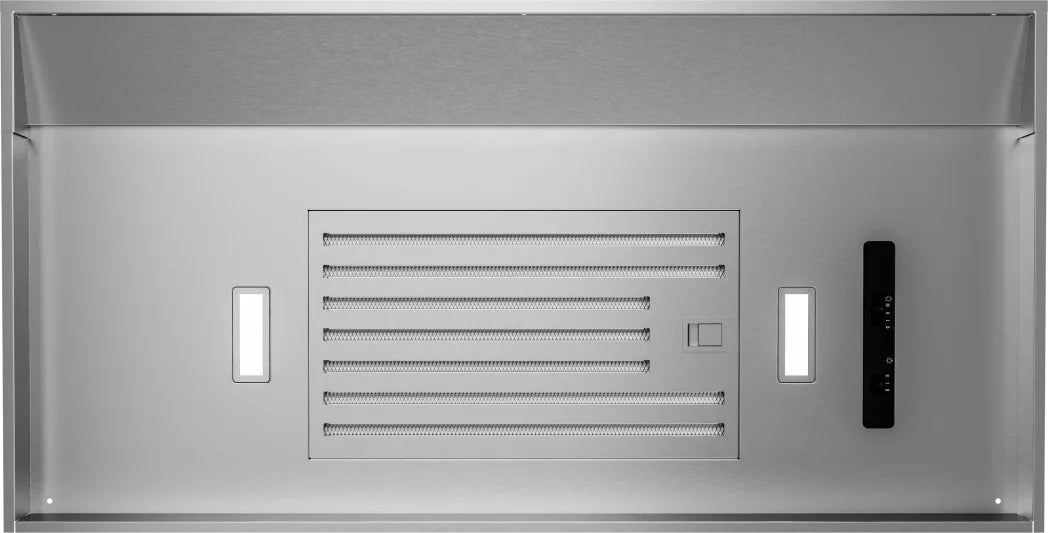

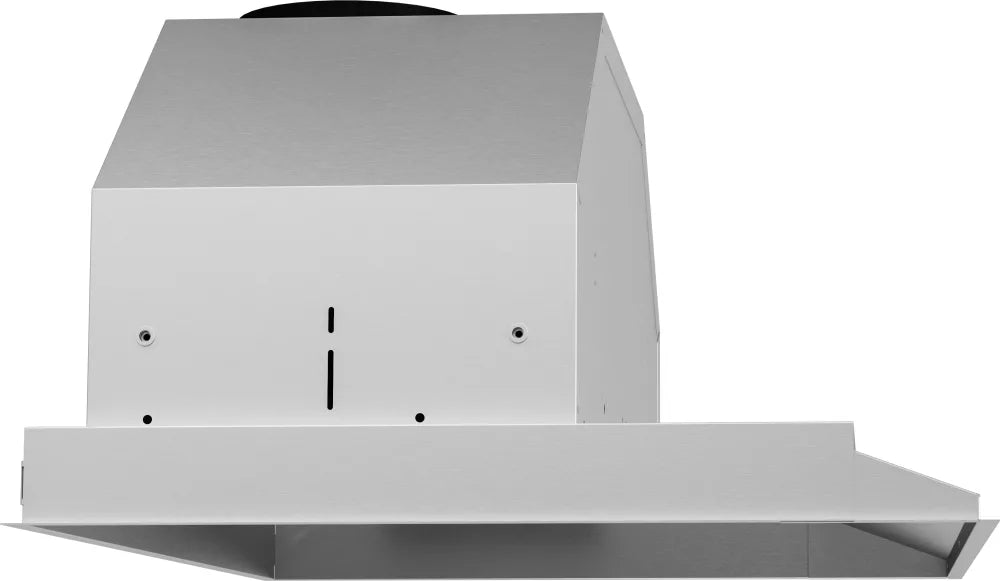

Vortex, 36 in. SS, LED
Model: AK9034BS
Category: Other
In StockSpecifications
| Series | Core |
|---|---|
| Color | Stainless Steel |
| Cutout Depth | 10 1/2" |
| Brand | Zephyr |
| Width | 34 3/8" |
| Height | 12 5/16" |
| Depth | 20 1/2" |
| Venting Type | Convertible |
| Blower Type | Internal |
| CFM | 390 |
| Light | Yes |
| Filter Type | Hybrid Baffle |
| Frequency | 60 Hz. |
| UL Listed | Yes |
| Fan | Yes |
| Vent Location | Top |
| Recirculating Kit | Kit Sold Separately |
| Duct Diameter | 6" |
| Duct Type | Round |
| cUL Listed | Yes |
| Number of Light Bulbs | 2 |
| Light Bulb Type | LED |
| Cutout Width | 26 5/8" |
| Exterior Width | 36" |
| Type | Cabinet Insert |
| Voltage | 120 |
| Color Family | Stainless Steel |
| Style | Insert |
| Appliance Category | Hood |
Product Details
The AK9034BS Essentials Power Vortex one-piece liner by Zephyr is designed for versatility and performance. With adjustable-depth installation dimensions ranging from 17-1/2" to 20-1/2", it ensures a perfect fit for various kitchen configurations. This innovative liner is equipped with a robust 390 CFM internal blower, delivering optimal ventilation and efficiency every time you cook. Additionally, the integrated LED lighting provides excellent illumination, enhancing visibility over your cooking surface. Whether you're preparing a simple meal or an elaborate feast, the AK9034BS Power Vortex liner combines functionality and style, making it an essential addition to any modern kitchen.
Essentials Power Vortex One-Piece Liner The Vortex one-piece liner leads the way with the industry’s only adjustable-depth installation dimensions. Staying true to its one-piece liner roots, Vortex has a single liner piece that is designed to extend up to 3-inches towards the front of the range hood so you can install it in spaces built for a hood up to 20-1/2-inches deep. Add to this its category-leading 390 CFM, optional recirculation kit and its 36-inch mounting height maximum and Vortex stands tall among the rest. 390 CFM Internal Blower Mechanical Slide Controls 3 Speed Levels LED Lighting Adjustable Depth Recirculating Option with Accessory Kit Hybrid Baffle Filter 6" Round Vertical Duct Specs
