24" Wide Built-in All-refrigerator, ADA Compliant (panel Not Included)
Model: ASDS2413IF
Category: Kitchen
In StockSpecifications
| Amps | 1 |
|---|---|
| Size | Compact |
| Type | Built-In or Freestanding |
| Brand | Summit |
| Color | Panel Ready |
| Depth | 17 3/4" |
| Style | Undercounter |
| Wi-Fi | No |
| Width | 23 3/8" |
| Height | 32" |
| Crisper | No |
| Options | Shallow Depth |
| Voltage | 115 |
| Warranty | 1 Year Parts and Labor, 5 Years Compressor |
| Door Lock | Yes |
| Ice Maker | No Ice Maker |
| Child Lock | No |
| Door Alarm | Yes |
| Door Color | Panel Ready |
| Hinge Side | Right Hinge |
| Energy Star | No |
| Color Family | Panel Ready |
| Color Option | Stainless Steel/Black |
| Defrost Type | Frost Free Defrost |
| Design Style | Panel Ready |
| Door in Door | No |
| Freezer Type | No Freezer |
| LED Lighting | Yes |
| Sabbath Mode | Yes |
| Undercounter | Yes |
| ADA Compliant | Yes |
| Cabinet Color | Black Cabinet |
| Counter-Depth | Yes |
| Ice Dispenser | No |
| Split Shelves | No |
| Dual Ice Maker | No |
| Exterior Width | 24" |
| Interior Color | Stainless Steel Interior |
| Number of Doors | 1 Door |
| Reversible Door | No |
| Smart Appliance | No |
| Type of Shelves | Chrome |
| Water Dispenser | No Water Dispenser |
| Works with Alexa | No |
| Number of Shelves | 3 |
| Appliance Category | Refrigerator |
| Depth without Door | 15 7/8" |
| Spill Proof Shelves | No |
| Total Capacity cu ft | 3.1 |
| Accepts Custom Panels | Yes |
| Fingerprint Resistant | No |
| Approved for Medical Use | No |
| Approved for Outdoor Use | No |
| Approved for Commercial Use | Yes |
| Works with Google Assistant | No |
| Convertible Freezer-Refrigerator | No |
| Depth with Door Opened at 90 Degrees | 40" |
Product Details

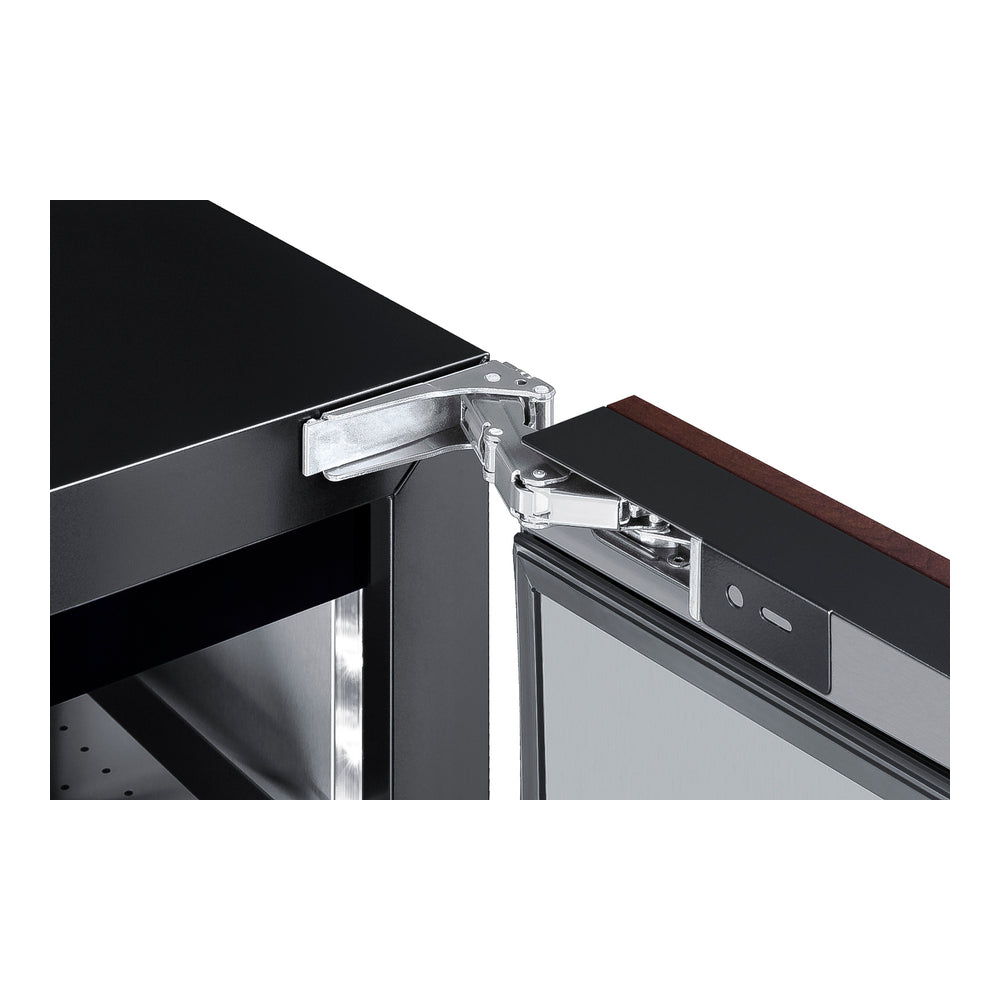

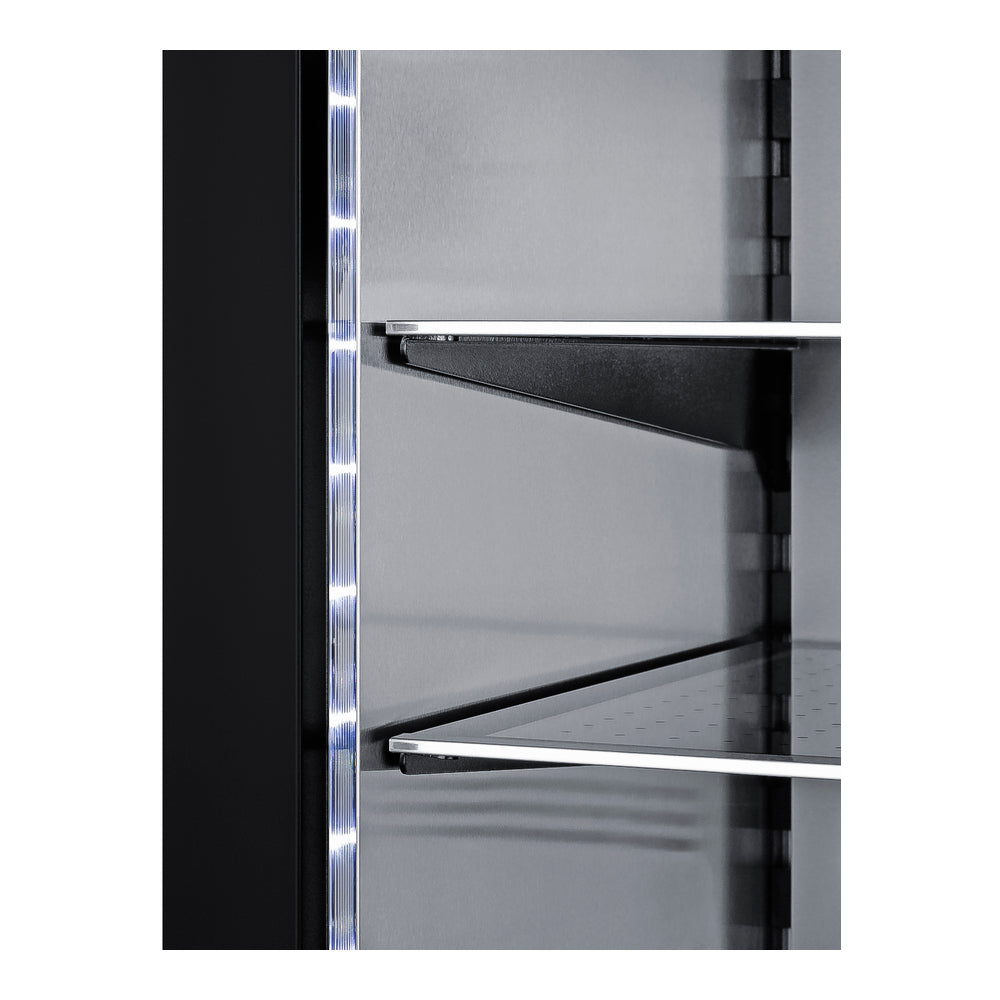

24" Wide Shallow Depth All-Refrigerator3.1 cu.ft. interior for residential cold storage ADA compliant design Built-in capable Factory installed lock Frost-free operation Digital thermostat Dimmable LED lighting Cantilevered shelving Open door alarm Sabbath mode setting Temperature Memory Function Fully articulating European style hinge Fully finished black cabinet 100% CFC Free CARB Compliant Less than 18" deepUnique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint spaceAdjustable heightLeveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinetsPanel-ready doorEuropean style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23.4" W x 28.38" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handlesStainless steel doorFully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panelStainless steel interiorWalls and floor are constructed from stainless steel for added strength and easy cleanupInternal fanFan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended rangeRight angle plugDesign allows you to plug the unit in flush against the wall socket with no need to add extra depthSealed backSpace-saving design with no exposed coils that offers easier cleanability Warranty: 1 Year Parts and Labor, 5 Years Compressor WarrantyWhy Buy Summit ASDS2413IF/ASDS2413IFLHD 24" Wide Built-In All-Refrigerator Seamless Integration: Panel-ready door design allows you to install a custom cabinet panel for a clean, fully integrated built-in appearance.
Space-Saving Design: Shallow under-18" depth and 32" height fit easily under ADA-compliant counters or standard cabinetry, with adjustable legs for flexible installation.
Advanced Cooling: Fan-forced cooling delivers even temperature distribution, while frost-free operation minimizes maintenance.
Smart Features: Equipped with a digital thermostat, dimmable LED interior lighting, door and temperature alarms, Sabbath mode, and a built-in lock.
Flexible Installation: Front-breathing ventilation supports true built-in or freestanding placement, with a right-angle power cord for tight spaces.
Frequently Asked QuestionsQ: What type of appliance is this?A: It is a 24-inch wide, under-counter, all-refrigerator designed for built-in or freestanding use.Q: What are the dimensions?A: The exterior dimensions are 23.38" W x 32" H x 17.75" D, with a shallow depth ideal for limited spaces.Q: Is it ADA compliant?A: Yes, it is designed with a 32" height to fit under lower, ADA-compliant counters and includes adjustable legs to raise the height up to 34" for standard counters.Q: Is it panel-ready?A: Yes, the unit accepts a full custom panel overlay to match existing cabinetry. The panel size is 28.38" H x 23.4" W, with a maximum weight of 10 lbs.Q: Is it frost-free?A: Yes, the unit features frost-free operation.Q: What is the temperature range?A: The refrigerator maintains a temperature range of 36°F to 43°F.
Pros and Cons of Summit ASDS2413IF/ASDS2413IFLHD 24" Wide Built-In All-RefrigeratorPros Flexible Installation: Shallow under-18" depth makes it ideal for kitchen islands, wet bars, and tight spaces, while front-breathing ventilation allows true built-in under-counter installation.
ADA-Compliant Height: Designed at 32" high for ADA-compliant counters, with adjustable legs and a sliding kickplate to raise the height up to 34" for standard counters.
Customizable Design: Panel-ready door with a fully articulating European-style hinge supports a custom overlay panel for a seamless cabinetry match.
Durable Construction: Stainless steel interior provides added durability and is easy to clean.
Advanced Cooling: Fan-forced, frost-free cooling delivers even temperature distribution with fast recovery and minimal maintenance.
User-Friendly Features: Includes a digital thermostat, dimmable LED lighting, door-open and high-temperature alarms, and a Sabbath mode setting. Security: Factory-installed lock helps keep contents secure.
Cons Limited Capacity: Compact 3.1 cu. ft. interior may be restrictive for larger storage needs. No Freezer: All-refrigerator design requires a separate freezer if frozen storage is needed.
Panel Not Included: Custom overlay panel must be supplied separately.
Weight Limitation: Door panel supports a maximum weight of 10 lbs. Price: Specialized built-in and ADA-compliant design may cost more than standard compact refrigerators.
Conclusion
The Summit ASDS2413IF is a premium solution for users seeking a shallow-depth, ADA-compliant refrigerator that integrates seamlessly into cabinetry. With its stainless steel interior, frost-free fan cooling, digital controls, and flexible installation options, it excels as a supplemental refrigerator for bars, offices, or accessible kitchens. While limited capacity and the absence of a freezer prevent it from serving as a primary household refrigerator, it performs exceptionally well in space-constrained and design-focused applications.
