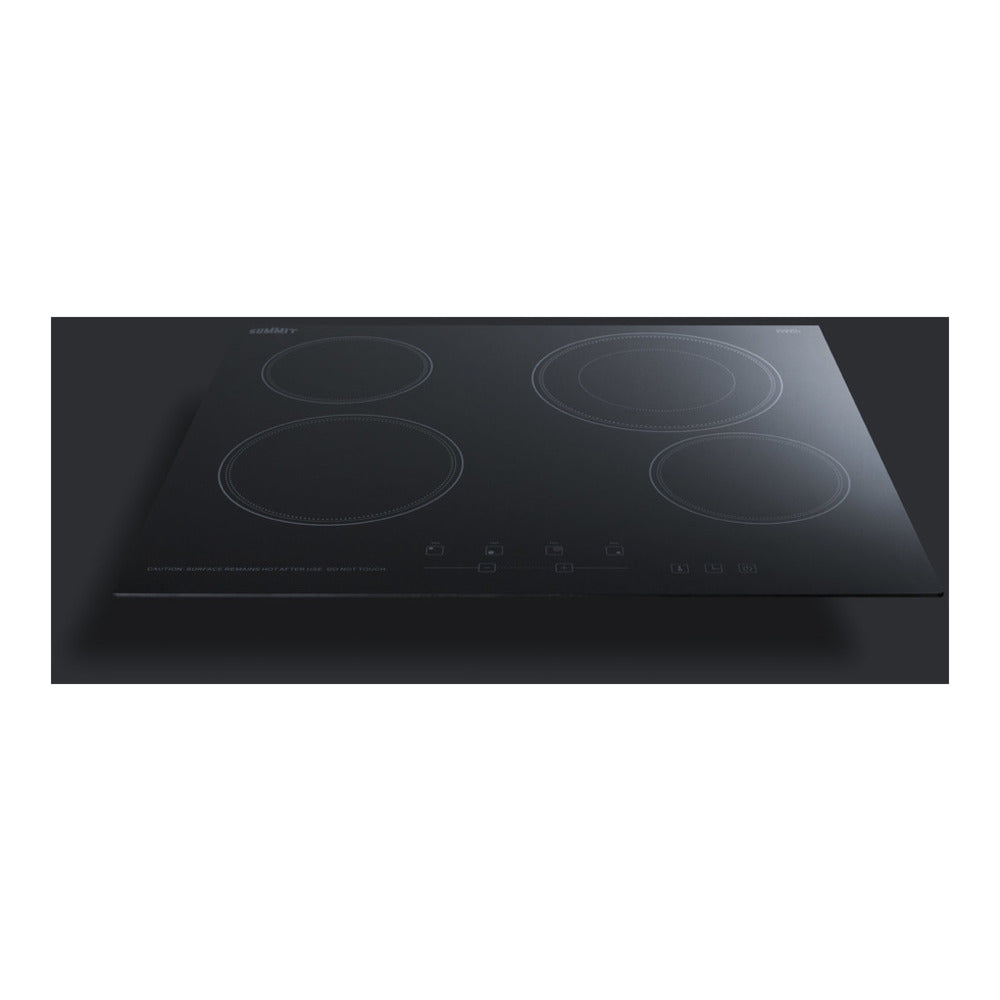

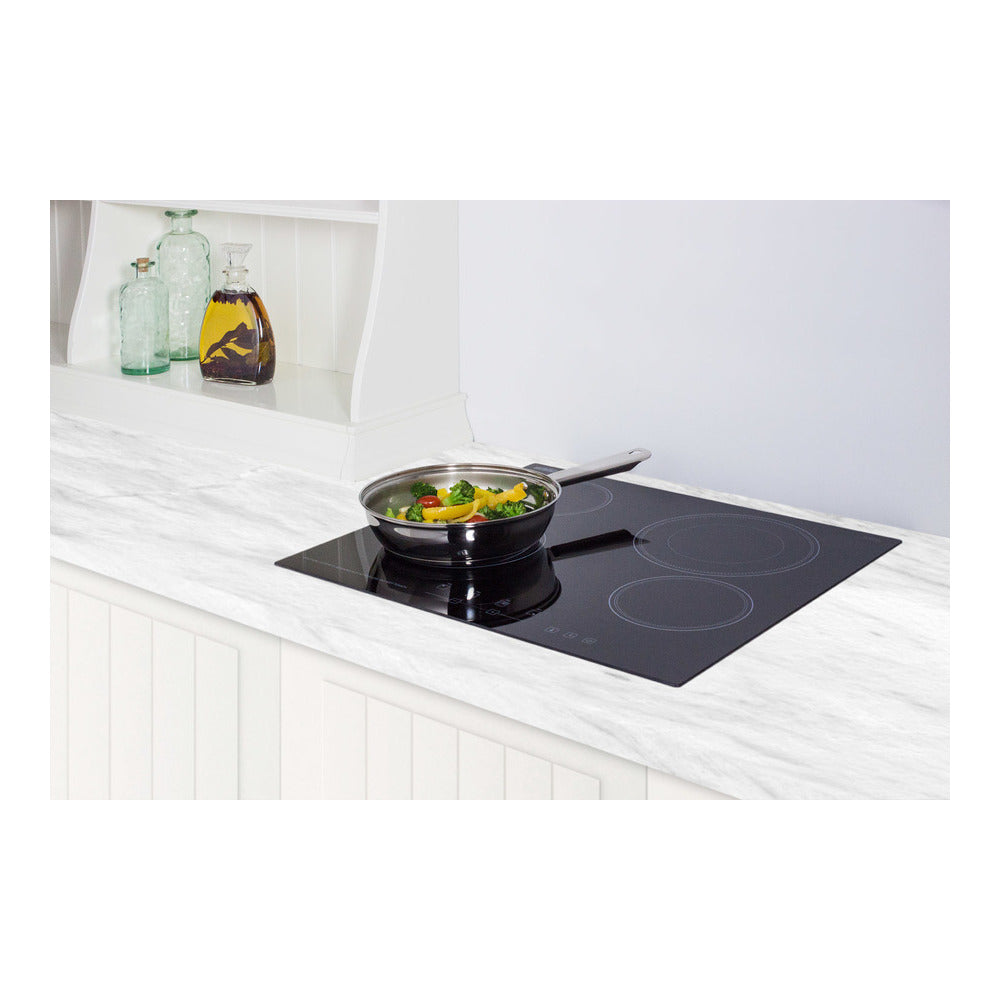

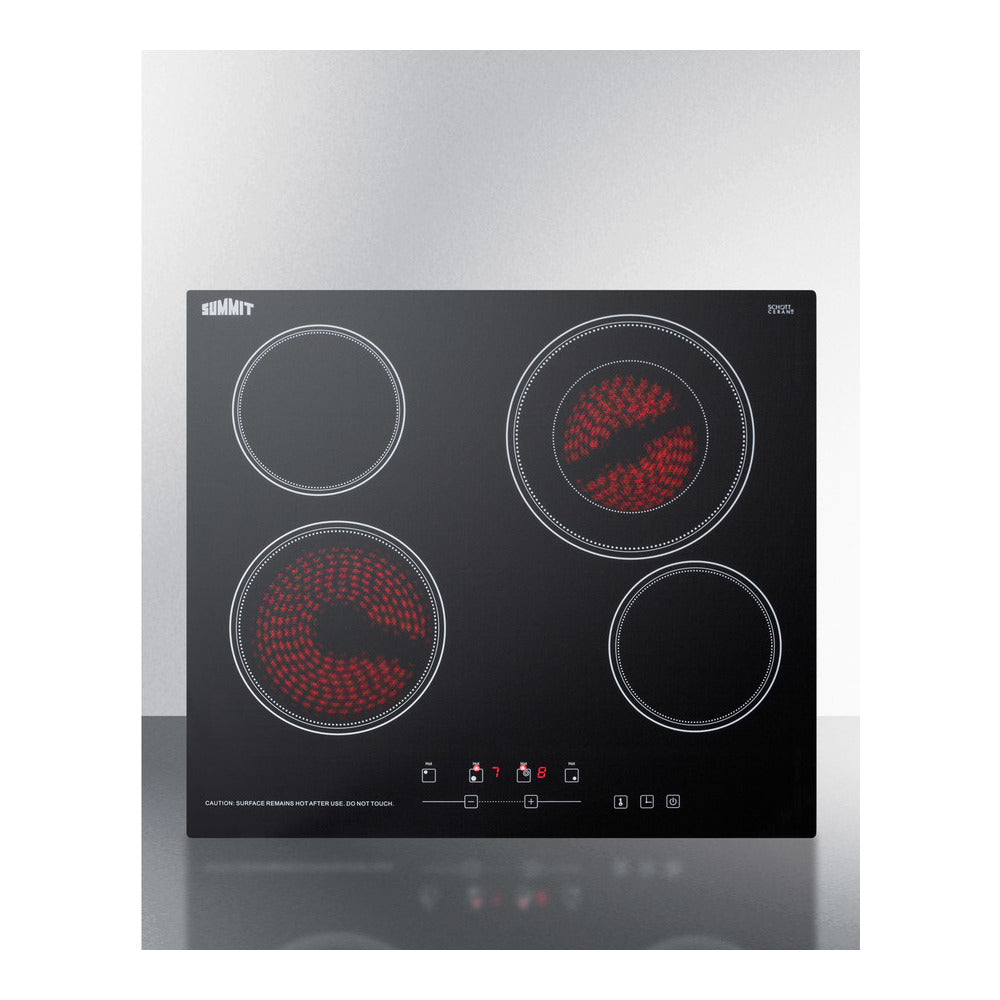

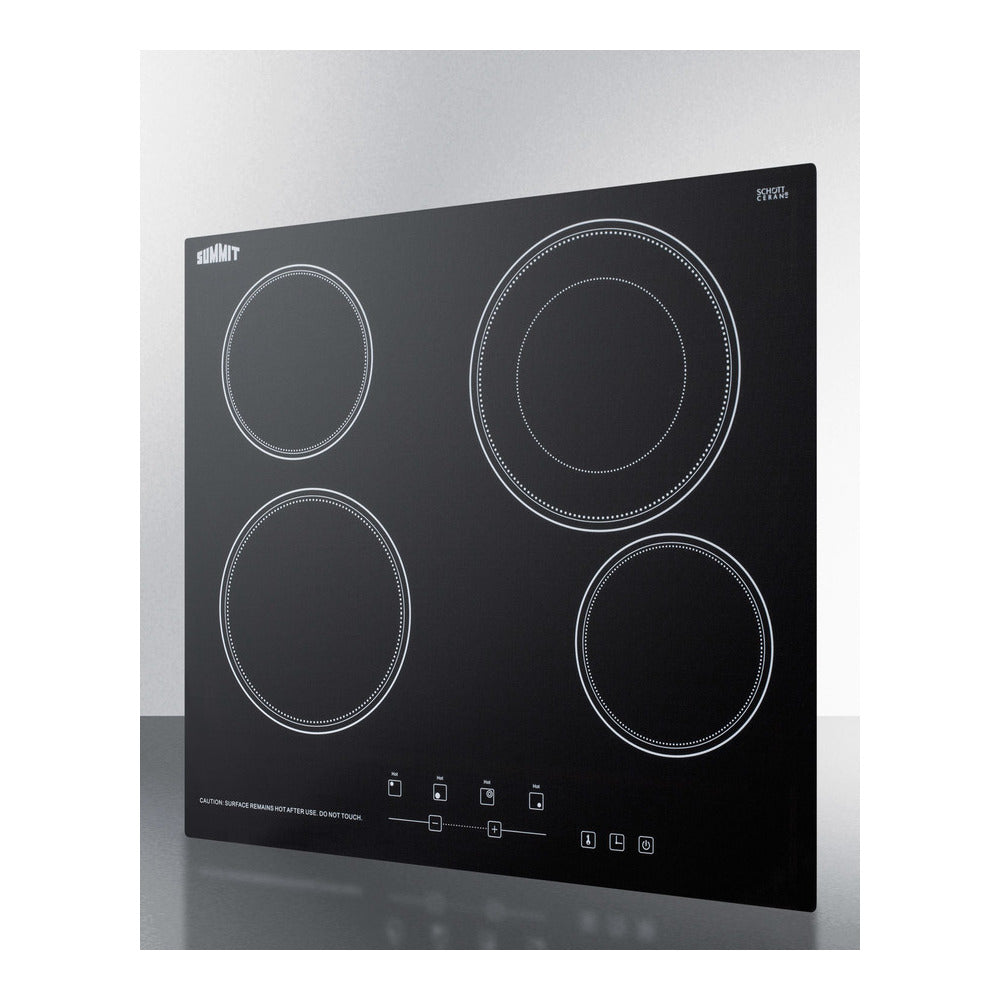

Summit 24" Wide 230v 4-burner Radiant Cooktop
Summit 24" Wide 230v 4-burner Radiant Cooktop Summit 24" Wide 230v 4-burner Radiant Cooktop Summit 24" Wide 230v 4-burner Radiant Cooktop Summit 24" Wide 230v 4-burner Radiant Cooktop Summit 24" Wide 230v 4-burner Radiant Cooktop Summit 24" Wide 230v 4-burner Radiant Cooktop
Summit

24" Wide 230v 4-burner Radiant Cooktop

Model: CR4B23T5B

Category: Kitchen

In Stock

Interested in this product?

Request a Quote

Or call us at (203) 237-4800

Specifications

Amps 30
Type Cooktop
Brand Summit
Color Black
Depth 20 1/2"
Grill No
Light Yes
Timer Yes
Width 23 1/4"
Height 2"
Griddle No
Voltage 230
Portable No
Fuel Type Electric
Induction No
ETL Listed Yes
French Top No
Color Family Black
Cutout Depth 19 1/2"
Cutout Width 22"
Sabbath Mode No
ADA Compliant Yes
Control Style Digital
Cutout Height 3 1/5"
Exterior Width 24"
Control Location Front
Appliance Category Cooktop
Burner-Element Type Radiant Element
Pan Presence Sensor No
Highest Element Output 2200 Watts
Burner-Element Output N1 1800 Watts
Burner-Element Output N2 1200 Watts
Burner-Element Output N3 2200 Watts
Burner-Element Output N4 1200 Watts
Number of Burners-Elements 4
Hot Surface Indicator Light Yes

Product Details

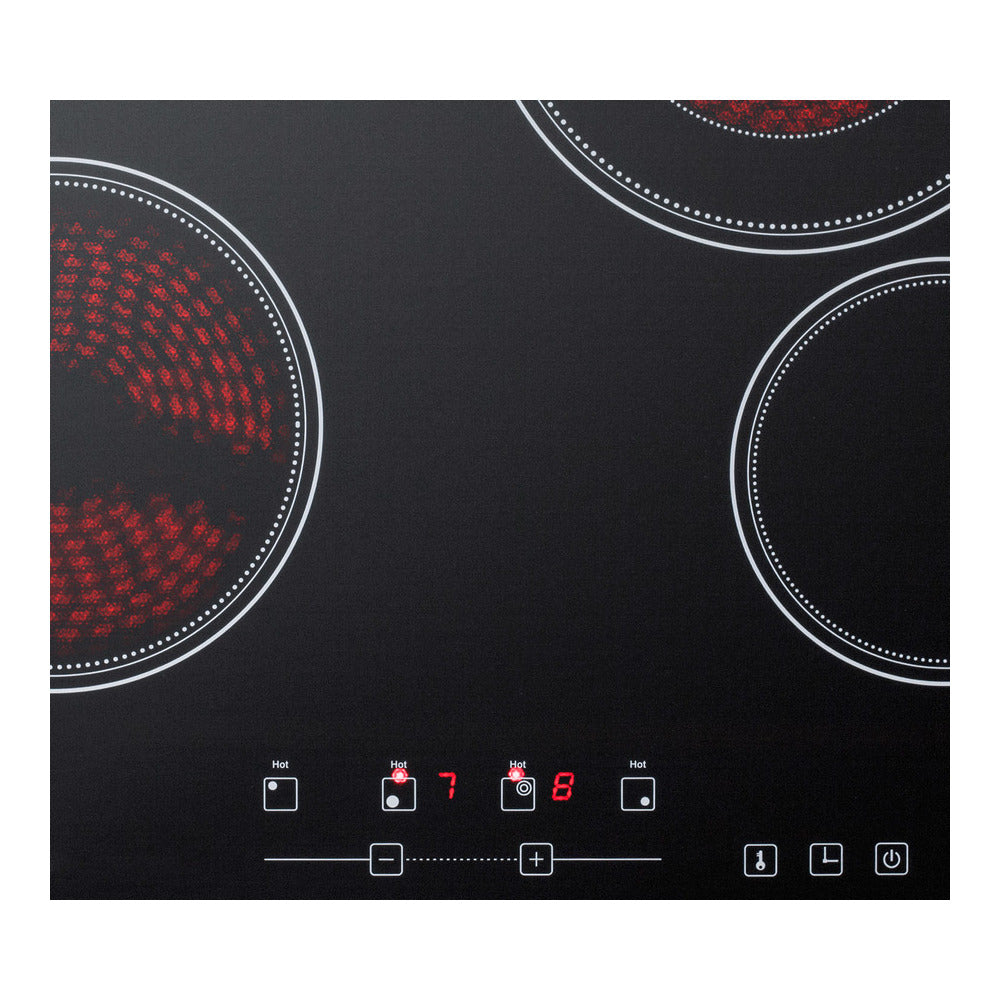

Features: Schott Glass Surface Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish Extra Large 2200W Burner Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed Large 1800W Burner Burner located on the front left corner is 7" in diameter to handle larger cooking vessels 2 Standard 1200W Burners Front right and rear left burners are 5.5" in diameter to meet most cooking needs Dual Cooking Zone Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware Digital Touch Controls Easy operation with a digital control panel and digital display 9 Power Levels Select and adjust your heating levels at the touch of a button Timer Allows you to program either burner to heat at a specified level for up to 99 minutes Residual Heat Indicator Lights Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch Designed for Built-In Installation Fits counter cutout sizes that are 22" wide by 19.5" deep ADA Compliant Design Upfront controls meet ADA guidelines for easier accessibility Child Lock Safety feature lets you lock the cooktop to prevent unsupervised heating Safety Cut-Off Function If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off Automatic Shutoff If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating 230V Operation Requires professional hardwired installation to 230V power supply 1 Year Parts & Labor Warranty
